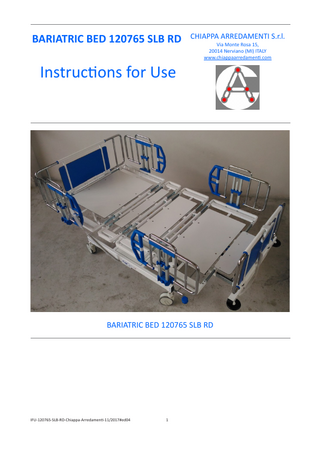

BARIATRIC BED 120765 SLB RD Instructions for Use

Warnings, Cautions and Notes

WARNING

Indicates possible hazards in procedures or conditions which, if not correctly followed, could result in death, injury or other serious adverse reactions.

Caution

Indicates possible hazards in procedures or conditions which, if not correctly followed, could result in equipment damage or failure.

Explains or amplifies a procedure or condition.

Indicates an optional item or feature.

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

3

CONTENTS General Warnings

6

1. Introduction

8

Standard features & Optional features

8

Specification labels

9

Product overview

10

2. Clinical Applications

11

Intended use

11

Indications

11

Contra-indications

12

3. Installation

13

Extendable Head board/Fixed Width Foot board

13

Side Rails

13

Electric connection

14

Cable storage

15

Potential equalisation terminal

15

Mattress

17

4. Operation

19

Brakes and steering

19

Side Rails

20

Extendable Head board/Fixed Width Foot board

25

Extendable Mattress Platform Sections

27

CPR backrest release

29

Mattress support panels removal

30

Egress handle 

30

Electrically operated retracting backrest 

31

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

4

Bed length adjustment

31

Bedstripper (linen shelf)

33

Lifing pole  and accessory socket

34

I.V. pole fixed height  and accessory socket

35

Oxygen bottle holder  and accessory socket

35

DIN accessory rails 

36

Urine bag holder 

36

Adjusting the mattress platform

37

Under-bed light

38

Patient Handset

38

Attendant Control Panel (ACP)

40

Function lockout

41

Backup battery

42

Duty cycle lockout

43

5. Product Care

44

Decontamination

44

Preventive maintenance

45

Battery test

47

Troubleshooting

48

Product lifetime

48

6. Accessories

49

7. Technical Data

50

8. Warranty and Service

54

9. Electromagnetic Compatibility (EMC)

55

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

5

General Warnings

Continued on next page

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

6

1.

Introduction

These instructions contain information for the installation, use and maintenance of the CHIAPPA ARREDAMENTI Bariatric Bed 120765 SLB RD. This bed has multiple functions to provide the optimum nursing position for both patient and carer.

Standard features  Extendable mattress platform sections  Electrical adjustment of bed height, backrest section, thigh/calf section.  Auto-Chair facility  Electrical adjustment of head down tilt (Trendelenburg) and foot down tilt (reverse Trendelenburg)

 Drop split side rails, adjustable height, detachable  Extendable and removable head board / Fixed width and removable foot board  Mattress support surface with removable radio translucent panels  Adjustable length mattress platform  Electric CPR function  Lithium battery backup  Bedstripper (linen shelf)  Under bed light  Full width brake bar at foot side (steering / swivelling / braked)  Patient Handset with backlight and Attendant Control Panel (ACP) with function locks  I.V. pole sockets and oxygen bottle sockets at head end  Corner roller buffers  150mm dual wheel castors (one steering and conductive, three swivelling)  ANTIMICROBIAL White Epoxy Powder Coated

Optional features Optional features are specified by the customer at the time of ordering.

Refer to “Accessories” in Chapter 6 for accessory model numbers.

 Electrically operated retracting backrest

 Lifing pole with integrated I.V. hooks

 DIN accessory rails set (two pieces)

 I.V. pole fixed height

 Egress handle

 Urine bag holder

 Built-in Scale

 Oxygen bottle holder

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

8

Specification label

The model number of the bed

120765 SLB RD

and serial number of the bed

XXXXXX

can be found on the specification label, located on the bed trolley frame, lef side.

Refer to the SN serial number to identify the bed for assistance purpose.

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

9

Product overview A. Extendable Head board

L. I.V. pole socket/Oxygen bottle holder socket

B. Fixed Width Foot board

M. Lifing pole socket

C. Attendant Control Panel (ACP)

N. Conductive and Steering Castor (front right)

D. Patient Handset

O. Brake/Swivelling/Steering pedal

E. Expandable Backrest section

P. Electric set (control box, battery)

F. Expandable Seat section

Q. Expandable sections operating knob

G. Expandable Thigh section

R. Extendable head board operating knob

H. Expandable Calf section

S. Adjustable length mattress platform

I. Side rails (detachable)

T. Mattress retainer/mattress extension platform

J. Side rail operating knobs

U. Underbed light

K. Bedstripper (linen shelf)

V. Corner Roller buffer

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

10

2.

Clinical Applications

Intended use

The bed is suitable for use in Application Environments 1, 2 and 3 as defined in EN 60601-52:2010. Application Environment 1 Intensive/critical care provided in a hospital where 24-hour medical supervision and constant monitoring is required, e.g. ITU, ICU and CCU. Application Environment 2 Acute care provided in a hospital or other medical facility where medical supervision and monitoring is required, e.g. general medical and surgical wards. Application Environment 3 Long term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and geriatric facilities.

Indications

The bed is appropriate for high dependency patients who pose a movement and handling risk and/or whose clinical condition requires that they are positioned with minimal physical handling. Patients with a moderate amount of independence can, at the carer’s discretion, use the controls to adjust their own position. The mattress platform can be positioned to assist with treatment of a patient as required within the clinical settings defined in Application Environments 1, 2 and 3.

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

11

The safe working load of the bed is 500kg (1102lb).

Contra-indications

The maximum recommended patient weight is 450kg (992lb).

The safe working load is calculated as follows (in accordance with EN 60601-2-52:2010): Maximum patient weight 450kg Mattress 12kg Accessories (including attached loads) 38kg TOTAL 500kg

The recommended patient height is between 146cm and 190cm.

At the discretion of the carer, patients taller than 190cm may be accommodated by extending the bed – refer to “Bed length adjustment” in Chapter 4. Ensure that the patient’s height does not exceed the “In-bed length” shown in Chapter 7.

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

12

3. Installation To install head Insert the head board and the foot board in their sockets. and foot boards (n.2)

Slide the external rail mounts into the bed frame nylon mounting points:

To install and remove the side rails (n.4)

pull the upper operating knob and slide the central chrome plated rail mount too, until the operating knob makes an audible “click”.

To remove the side rail, pull the upper operating knob and holding the top side rail handle, pull out the side rail.

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

13

A label on each side rail indicates they are detachable.

Electric connection

Connect the mains plug to a suitable socket outlet. Make sure the mains plug is easily accessible so it can be disconnected quickly in an emergency. When the bed is connected to the electricity supply, a GREEN indicator will light on the control box. (The electric set is located underneath the mattress platform, covered with a plastic laminated panel, unscrew the panel to reach the set if needed.)

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

14

A solid YELLOW indicator will light on the Attendant Control Panel (right picture) and on the control box (lef picture), if the emergency battery is on charge.

Cable storage

When not in use or before moving the bed, take the power supply cord, coil it up and place it in the hook located in the black socket at head side.

To isolate the bed from the electricity supply, disconnect the mains plug from the socket outlet.

Potential equalisation terminal

A potential equalisation terminal is located at the head end of the bed. When other electrical equipment is within reach of the patient or carer, potential differences between the equipment can be minimised by connecting together their potential equalisation terminals.

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

15

Recommended positioning from rear wall at least 8cm from the corner roller buffer IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

16

Mattress

Mattress size label

A label on the frame indicates the correct mattress size:

The numbers 1,2 on the label indicate different mattress platform widths and 1,2,3 different mattress platform lengths; refer to “Bed length adjustment” in Chapter 4.

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

17

Mattress and side rails

When choosing bed and mattress combinations, it is important to consider the use of side rails based on clinical assessment of each individual patient and in line with local policy. When assessing the suitability of a mattress for use with side rails, the following factors should be considered:

 The bed is designed to provide an acceptable side rail height when used with a foam mattress up to 19cm thick.

 Specialist powered air / foam replacement mattresses will typically envelop the patient when loaded and can generally be deeper than a foam mattress without compromising safety. Other makes of specialist mattress replacement must be assessed individually prior to use to verify sufficient clearance is maintained.

 Mattress overlays are not recommended for use with this bed.  To ensure compliance with EN 60601-2-52:2010, an approved mattress should be used. Compliance with this standard when using other mattresses must be validated by the user.

 For more information on suitable mattresses and mattress replacements, contact your local approved distributor.

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

18

4.

Operation

Brakes and Steering

The brake pedals at the foot end of the bed have three positions as show

STEER: all four castors can rotate, but the steering castor (see below) is locked so that it cannot swivel. This helps to keep the bed on a straight line.

FREE: all four castors are free to rotate and swivel.

BRAKE: brakes are applied on all four castors.

Position the bed so that all the castors line up in the direction of travel. Using the steering castor Raise the pedals to lock the steering castor and move the bed by pushing it from the opposite end.

The steering castor is at right head side. The steering castor is conductive too.

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

19

Side rails

The bed is fitted with drop split side rails, adjustable height and detachable. They can be adjusted on three different height levels:

First level (all down – mattress level)

Second level (mid)

Third level (all up)

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

20

Operation

Side rails are detachable.

To lower the side rail

Hold the top side rail handle (third level) and pull the UPPER blue operating knob:

push down the side rail which will slide at the second level (mid) of height: IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

21

then pull the LOWER blue operating knob and push down the side rail at the first level (all down – mattress level):

IFU-120765-SLB-RD-Chiappa-Arredamenti-11/2017#ed04

22
