Page 1

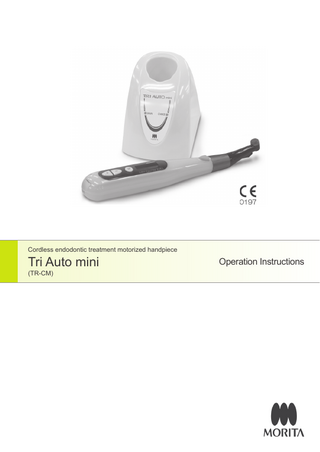

Cordless endodontic treatment motorized handpiece

Tri Auto mini (TR-CM)

Operation Instructions

C on tents Warning and Prohibition-------------------------------------------------------------------------------------------------------------------------------------- 3 Features---------------------------------------------------------------------------------------------------------------------------------------------------------- 5 Parts Identification and Accessories---------------------------------------------------------------------------------------------------------------------- 6 Usage------------------------------------------------------------------------------------------------------------------------------------------------------------- 7 Operation Conditions for the main unit and AC adapter-------------------------------------------------------------------------------------------------------------7 (1) Before Use------------------------------------------------------------------------------------------------------------------------------------------------------------------7 Charge Battery------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 7 Connect Contra Angle---------------------------------------------------------------------------------------------------------------------------------------------------------------------- 8 File Installation------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 9

(2) Operation------------------------------------------------------------------------------------------------------------------------------------------------------------------ 11 Basic Operation-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------11 Memory Settings: Primary Functions------------------------------------------------------------------------------------------------------------------------------------------------- 12 Memory Settings: Additional Operation Settings---------------------------------------------------------------------------------------------------------------------------------- 13 Memory Settings: Other Settings------------------------------------------------------------------------------------------------------------------------------------------------------ 14

(3) After Use------------------------------------------------------------------------------------------------------------------------------------------------------------------- 15

Usage; Operation with the Root ZX mini----------------------------------------------------------------------------------------------------------------16 Install File Electrode---------------------------------------------------------------------------------------------------------------------------------------------------------------------- 16 Connect the Transmission Cable------------------------------------------------------------------------------------------------------------------------------------------------------ 18 Operation------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 19

Sterilization, Replacement Parts, and Storage--------------------------------------------------------------------------------------------------------22 (1) Sterilization--------------------------------------------------------------------------------------------------------------------------------------------------------------- 22 Autoclaving the Contra Angle----------------------------------------------------------------------------------------------------------------------------------------------------------- 22 Wipe with Ethanol------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 23

(2) Replacement Parts----------------------------------------------------------------------------------------------------------------------------------------------------- 24 Battery Replacement--------------------------------------------------------------------------------------------------------------------------------------------------------------------- 24 File Electrode Replacement------------------------------------------------------------------------------------------------------------------------------------------------------------ 24

(3) Storage-------------------------------------------------------------------------------------------------------------------------------------------------------------------- 25

Maintenance and Inspection-------------------------------------------------------------------------------------------------------------------------------26 Troubleshooting-----------------------------------------------------------------------------------------------------------------------------------------------28 Technical Description----------------------------------------------------------------------------------------------------------------------------------------30 Appendix- Electromagnetic declaration-----------------------------------------------------------------------------------------------------------------32 Thank you for purchasing the Tri Auto mini. For optimum safety and performance, read this manual thoroughly before using the unit and pay close attention to warnings and notes. Keep this manual in a readily accessible place for quick and easy reference. NOTICE TO PROTECT INTELLECTUAL PROPERTY US PAT. US PAT. US PAT. US PAT. US DESIGN APPLN. DE PAT. DE PAT. DE PAT. DE PAT. APPLN. DE PAT. APPLN. DE PAT. APPLN. EP DESIGN APPLN. CN DESIGN APPLN.

5897315 5902105 5980248 6929476 29/347684 19520765 19549662 19702370 19628854 19655338 10219648 1690298 201030166890.6

JP PAT. JP PAT. JP PAT. JP PAT. JP PAT. JP PAT. JP PAT. JP PAT. JP PAT. APPLN. JP PAT. APPLN. JP DESIGN. JP DESIGN.

3113096 3129888 3223042 3213480 3264607 3213539 3676753 4139809 2009-296456 2010-058711 1394778 1394779

Operation 2010-12-16

Do not fail to receive clear instructions concerning the various ways to use this equipment as described in this accompanying Operator’s Manual. Fill out and sign the warranty and give the dealer from whom you purchased the equipment his copy.

Features

Attention Dealers

Warning and Prohibition

Attention Customers

Do not fail to give clear instructions concerning the various ways to use this equipment as described in this accompanying operator’s manual.

Prevent Accidents

Usage

Most operation and maintenance problems result from insufficient attention being paid to basic safety precautions and not being able to foresee the possibilities of accidents. Problems and accidents are best avoided by foreseeing the possibility of danger and operating the unit in accordance with the manufacturer’s recommendations. First thoroughly read all precautions and instructions pertaining to safety and accident prevention; then, operate the equipment with the utmost caution to prevent either damaging the equipment itself or causing bodily injury.

Parts Identification

After instructing the customer in the operation of the equipment, have him fill out and sign the warranty. Then fill in your own section of the warranty and give the customer his copy. Do not fail to send the manufacturer’s copy to J. Morita Mfg. Corp.

The following symbols and expressions indicate the degree of danger and harm that could result from ignoring the instructions they accompany:

This warns the user of the possibility of mild injury or damage to the instrument. * The warning symbols ( ) and note symbols ( ) that appear next to the main text on the right hand side of the page refer to and are explained by the Warnings and Notes at the bottom of the page.

)

This alerts the user of important points concerning operation or the risk of equipment damage.

The user ( e.g. the hospital, clinic etc. ) is the party responsible for the maintenance and proper operation of a medical device. This instrument must only be used by dentists and other legally licensed professionals. Do not use this equipment for anything other than its specified dental purpose.

Disclamer The J. Morita Mfg. Corp. will not be responsible for accidents, equipment damage, or bodily injury resulting from: 2. any changes, modifications, or alterations of its products 3. the use of products or equipment made by other manufacturers, except for those procured by the J. Morita Mfg. Corp. 4. maintenance or repairs using parts or components other than those specified by the J. Morita Mfg. Corp. and other than in their original condition

6. workplace conditions and environment or installation conditions which do not conform to those stated in this manual such as improper electrical power supply 7. fires, earthquakes, floods, lightning, natural disasters, or acts of God. The J. Morita Mfg. Corp. will supply replacement parts and be able to repair the product for a period of 10 years after the manufacture of the product has been discontinued.

Operation 2010-12-16

Technical Description

5. operating the equipment in ways other than the operating procedures described in this manual or resulting from the safety precautions and warnings in this manual not being observed

Troubleshooting

1. repairs made by personnel not authorized by the J. Morita Mfg. Corp.

Maintenance, Inspection

Federal law restricts this device to sale by or on the order of a dentist (for U.S.A.).

Stirilization, Replacement Parts

(

Usage; with the Root ZX mini

This warns the user of the possibility of extremely serious injury or complete destruction of the instrument as well as other property damage including the possibility of fire.

Warning and Prohibition Warning • This unit must not be connected to or used in combination with any other apparatus or system. It must not be used as an integral component of any other apparatus or system. J. Morita Mfg. Corp. will not be responsible for accidents, equipment damage, bodily injury or any other trouble which results from ignoring this prohibition. • A rubber dam should be used when performing endodontic treatment.

Prohibition

:This indicates when not to use the instrument.

•• Electromagnetic wave interference could cause this unit to operate in an abnormal, random and possibly dangerous manner. Cellular phone, transceivers, remote controls and all other devices which transmit electromagnetic waves located inside the building should be turned off. •• Instruments which produce considerable electrical noise such as electric scalpels can cause the Tri Auto mini to operate abnormally. Turn the Tri Auto mini off before using any instruments that produce electrical noise. •• Do not use this instrument on patients who have a pacemaker or an Implantable Cardioverter Defibrillator (ICD). •• Illumination devices such as fluorescent lights and film viewers which use an inverter can cause the Tri Auto mini to operate erratically. Do not use the Tri Auto mini near lights such as these. •• This unit must not be connected to or used in combination with any other apparatus or system. It must not be used as an integral component of any other apparatus or system. J. Morita Mfg. Corp. will not be responsible for accidents, equipment damage, bodily injury or any other trouble which results from ignoring the above prohibitions. •• Do not use this unit in the medical operation room. •• Blocked canals cannot be accurately measured.

Operation 2010-12-16

1. Only fully trained and qualified personnel may operate equipment. 2. Items to be duly noted when installing equipment. 1) Locate the unit in a place where it will not get wet. 2) Install the unit in a location where it will not be damaged by air pressure, temperature, humidity, direct sunlight, dust, salts, or sulfur compounds. 3) The unit should not be subjected to tilting, excessive vibrations, or shocks (including during shipping and handling). 4) Do not install the unit where chemicals are stored or where gas may be released. 5) Follow all electrical specifications including frequency (Hz), voltage (V), and current capacity (A) (power consumption). 6) The equipment must be properly grounded.

Warning and Prohibition

Safety and Accident Prevention for the Operation of Electrical Medical Devices

3. Item to be duly noted before use. 1) Inspect all switch connections, polarity, dial settings, meters etc. to confirm that the equipment will operate properly. 2) Confirm that the ground is connected properly. 3) Confirm that all cords are connected properly. 4) Take into consideration that simultaneous use of more than one instrument or device can create a dangerous situation or lead to a mistake in diagnosis. 5) Reconfirm the safety of external circuits or systems which are connected directly to the patient. 4. Item to be duly noted during use. 1) Never use the equipment for treatment or diagnosis more than necessary or for longer than necessary. 2) Maintain a constant vigilance for abnormal conditions in both the equipment and the patient. 3) Appropriate steps, such as shutting the equipment down, should be devised to protect the safety of the patient in case any abnormalities in the equipment or the patient are observed. 4) Make sure the patient does not handle or manipulate the equipment. 5. Item to be duly noted after use. 1) Turn the power off after returning dials, switches etc. back to their original positions in the prescribed order. 2) Do not use excessive force or pull the cord itself to disconnect cords. 3) The following items should be considered when storing the equipment: (1) The storage area should protect the equipment from getting wet. (2) The storage area should protect the equipment from any possible damage due to atmospheric pressure, temperature, humidity, wind, direct sunlight, dust or air containing salts or sulfur. (3) The equipment should be protected from tilting, vibrations, percussive shocks, etc. (including when it is being moved). (4) The storage are should be free of chemicals and gases. 4) All accessories, cords, guides etc. should be cleaned, properly arranged and carefully put away. 5) Before storage, the equipment should be cleaned so that it is ready to be used again. 6. In case of a malfunction or defect, the operator should attach a written notice indicating that the equipment is out of order without attempting to repair the equipment himself; repairs should be referred to a qualified serviceman. 7. Equipment should not be modified in any way. 8. Maintenance and Inspection 1) All equipment and components should be inspected regularly. 2) Equipment which has not been used recently should always be inspected to confirm that it functions properly and safely before being put back into use.

Operation 2010-12-16

Features Features and intended use: The Tri Auto mini is a compact, cordless endodontic treatment motorized handpiece for preparation and enlargement of root canals. It may be connected to the Root ZX mini, an apex locator (sold separately). Instructions for how to use the Tri Auto mini when it is connected to the Root ZX mini are printed on a blue background like this one.

Liquid Crystal Display (LCD) : The LCD is easy to read and shows all settings as well as how the motor is running.

Controls : Speed :

Eleven rotation speeds can be set from 50 to 1,000 rpm.

Torque Reverse :

The motor automatically reverses its rotation if the torque load exceeds the set value to reduce the risk of jamming.

Slow Down :

The file slows down as torque increases. The file slows down as it approaches the apex if the Tri Auto mini is connected to the Root ZX mini.

Forward & Reverse :

The file may rotate in both forward and reverse directions.

Auto Start & Stop* :

The file starts when it is inserted in the canal and stops when it is taken out.

Apical Reverse or Stop* :

The motor reverses or stops when the tip of the file reaches a preset position inside the canal.

Apical Torque Reduction* : The automatic torque reverse value is reduced as the file tip approaches the apex. * These controls can be used if the Tri Auto mini is connected to the Root ZX mini.

Memory: Six combinations of speed, torque etc. can be memorized.

Operation 2010-12-16

Parts Identification and Accessories

Features, Parts Identification

Parts Identification Contra Angle

Main Switch

Motor Handpiece Liquid Crystal Display Select Switch Plus and Minus Switches

Charger

Charger Switch

Power Supply Cord Power LED (green)

Charge LED (orange)

Accessories Battery

Power Supply Cord

*Inside motor handpiece

Transmission Cable (Option)

Operation 2010-12-16

Spray Nozzle

AR Spray

* Use this same nozzle when replacing a can of AR Spray

* Sold Separately

File Electrode (Option)

Usage Operation Conditions for the main unit and AC adapter Temperature: +10°C (50°F) to +40°C (104°F), Realtive Humidity: 30 ~ 75 RH% (without condesation), Atmospheric Pressure : 700 ~ 1,060hPa * If the unit has not been used for some time, make sure it works properly before using it again.

(1) Before Use Charge Battery

The battery is built into the motor handpiece.

* Ambient (room) temperature for charging is from 10ºC (50ºF) to 40ºC (104ºF). 1

Green LED Connect the power cord to the charger and then plug it in. Turn the charger on. The green Power LED will light up. Do not use any charger; use only the one that comes with the Tri Auto mini.

Green LED

Orange LED

Put the handpiece into the charger as far as it will go. The orange Charge LED will light up to show that charging has begun. * Charging time is about 120 minutes.

Chage the battery as soon as the battery power indicator gets down to its last bar. If the orange charge LED goes off immediately or doesn’t light up when the handpiece is put into the charger, the battery is probably fully charged. To make sure, take the handpiece out and put it back in again. Make sure the contact areas for the handpiece and charger are free of debris, especially metal fragments. Wipe with ethanol to remove any foreign debris. Do not press down too hard to wipe the charging areas; this could bend the electrical contacts. Do not leave the charger where it will be exposed to direct sunlight.

•• If an electrical storm occurs while the battery is being charged, do not touch the charger or its cord as there would be a risk receiving an electric shock. •• Do not get the charger wet or use it where it might get wet.

•• The battery is not charged when the unit is shipped from the factory and must be charged before using the unit. •• Do not pull or yank the cord when disconnecting the AC adapter. Always grip the connectors. •• Use only the power cord provided and plug both ends all the way in. •• Charger and power supply cord must be located outside the so called patient environment (2.0 m around the patient location).

Operation 2010-12-16

Charge Battery The number of bars shows how much battery power is left. Recharge the battery when there is only one bar left.

If the battery runs almost completely out, the Tri Auto mini will automatically turn itself off after about 10 seconds. Recharge the battery as soon as possible.

If the battery power is very low and a large load is applied to the file, the motor may stop or the unit may turn itself off. This is for safety; there may not be enough power to run the motor with sufficient stability. Recharge the battery if the display shown to the left appears frequently. U sa g e

Connect Contra Angle

Line up the marks.

Approx. 290° The rotation range of the contra angle is about 290°. Set it so that it reaches the treatment area and the display is easy to see. Contra Angle

Motor Handpiece

Do not force the contra angle to rotate beyond its limit.

Line up the match marks and push the contra angle onto the handpiece until there is an audible click. * The contra angle must be lubricated with AR Spray before using for the first time. Refer to “Autoclaving the Contra Angle”.

•• Make sure the connection components for both the handpiece and the contra angle are not damaged. An improper connection could cause the motor to reverse unexpectedly and result in injuring the patient.

•• Push the contra angle all the way onto the handpiece and then give it a light tug to make sure it is securely attached. Operation 2010-12-16

File Installation File release button

Hold down the file release button Insert the file and turn it back and forth until it lines up with the latch mechanism. Push the file all the way into the latch. Release the file release button. Use either Nickel-titanium or stainless steel files.

For use with the Root ZX mini, connect the file electrode and the transmission cable .

•• Never use deformed or damaged files. •• Give the file a light tug to confirm it is securely held in place. If the file is not securely placed, it could come out and injure the patient.

•• Use caution when inserting and removing files to avoid injury to fingers. •• Inserting and removing files without holding the file release button down will damage the chuck. •• Make sure the Tri Auto mini is turned off before inserting or removing files. •• Do not connect the file electrode if the handpiece is not connected to the Root ZX mini.

Operation 2010-12-16

Check Operation File release button If a malfunction occurs, the Tri Auto mini will stop working. In this case, contact your local dealer or the J. Morita Corp. The number that appears after Error will depend on the type of malfunction. Main Switch

Plus and Minus Switches

■■ Make sure the contra angle and handpiece are properly and securely connected. ■■ Make sure the file is securely installed; give it a light tug. ■■ Check switch operation. U sa g e

Turn the Main switch on and use the Plus or Minus switches to select a memory. Then press the main switch again to see if the Tri Auto mini runs smoothly. Refer to page 18 for instructions on checking the Tri Auto mini’s operation when it is connected to the Root ZX mini.

•• Operate the Tri Auto mini outside the oral cavity to make sure it will operate properly before using it for treatment. •• Some canals may be impossible to enlarge; always take an x ray to check. •• Nickel-titanium file may suddenly snap depending on the curvature and shape of the canal; stop using the file if you notice or feel anything amiss. •• Files will eventually break due to metal fatigue and should be replaced before they reach this point. •• Electric noise or a malfunction could interfere with the motor control. Do not depend entirely on the unit controlling itself; always watch the display and be aware of tactile feedback. •• Files will jam and break if too much force is applied to them. •• Files may break even when the torque reverse is turned on, depending on the setting value. Never exert excessive force on the file. •• Files designed for use with engines break easily if too much force is applied. Also do not use these files for canals with excessive curvature. •• Always examine files for stretching and other deformities or damage before using them. Any type of deformity could result in the file breaking. •• Do not let the file release button on the contra angle press against the teeth opposite to the treatment area; this could cause the file to come out and result in an injury. •• Do not press the file release button while the motor is running. It could heat up and cause a burn, or the file could come out and cause an injury.

•• Stop using the Tri Auto mini if you feel or notice anything unusual. The Tri Auto mini cannot be used for every canal and should be used along with manual enlargement. •• File break more easily at fast speeds; always follow the file manufacturer’s usage recommendations. Also always check the speed settings before use. •• Do not use any type of files except nickel-titanium and stainless steel ones. •• Nickel-Titanium files are easily broken; note the following points. •• Open the canal up to the apical constriction manually before using a nickel-titanium file. •• Never use excessive force to insert the file. •• First remove all foreign matter, such as bits of cotton from the root canal. •• Never use excessive force to advance the file down the root canal. •• Do not use for extremely curved canals. •• Try not to trigger the auto torque reverse function when advancing the file down the canal. •• Do not skip file sizes; suddenly using a much larger file could break it. •• If you encounter resistance or the auto torque reverse is triggered, back the file up 3 or 4 mm and carefully advance it down the root canal again. Or replace the file with a smaller size. Never use excessive force. •• Do not force the file down the root canal or press it against the root canal wall. •• Do not use the same file continuously in one position as this may create “steps” on the root canal wall. •• Always take file out of the contra angle after use. Operation 2010-12-16

(2) Operation Basic Operation Plus and Minus Switches (Select memory and change settings)

Standby Display

Torque Display

Select Switch

Memory Number Rotation Direction Battery Power Speed Setting Liquid Crystal Display

Current Torque

Torque Reverse Setting

Main Switch (Turn power on and starts/ stops rotation)

Torque Reverse Setting

1. Turn Tri Auto mini on: Press Main switch. The standby display will appear. When the standby display is being shown, you can turn the Tri Auto mini off by holding down the Select Switch and pressing the Main Switch * The Tri Auto mini turns itself off automatically if it is not used for 3 minutes (factory setting).

2. Select Memory number: Press Plus or Minus switch. * There are six memories for various combinations of speed, torque reverse and rotation direction settings. * The backlight will temporarily change color if changing the memory number changes anything other than the speed, torque reverse, and rotation direction settings.

3. Start motor: Press Main switch again. The Torque Display will appear. * If you hold the Main Switch down when you start the motor, it will run only while the switch is held down and stop when the switch is released. * You can temporarily change the torque reverse setting while the motor is running by pressing the Plus or Minus switch. * The color of the backlight changes depending on the load applied to the file. * The backlight starts blinking when the load approaches the torque reverse setting.

4. Stop motor: Press Main switch again. The standby display will reappear. When connected to the Root ZX mini, refer to page 19 for meter readings and operation.

•• Do not fail to check the new settings whenever you change the Memory Number.

Operation 2010-12-16

Memory Settings The factory settings are shown below. These settings can be changed. Memory

Setting

M1, M4

M2, M5

M3, M6

Speed (rpm)

400

250

Torque Reverse (Ncm)

1.0

0.8

0.6

Rotation Direction

Forw ard

Torque Slow Down

OFF

Canal Measurement Linkage**

Apical Reverse or Stop**

R everse ON

Apical Slow Down**

OFF

Apical Torque Reduction**

OFF

U sa g e

Auto Start or Stop**

** These functions are available only when connected to the Root ZX mini.

Memory Settings: Primary Functions Primary Functions: Rotation Speed, Torque Reverse, Rotation Direction 1. Select a memory number for the standby display by pressing the Plus or Minus switch. Standby Display

Speed

2. Press the Select Switch to choose one of the primary functions. 3. Press the Plus or Minus switch to change the setting. * The display will go back to the standby display if 5 seconds (factory setting) elapses without a switch being pressed.

Speed Settings:

50, 100, 150, 200, 250, 300, 400, 500, 600, 800 and 1000 rpm

Torque Reverse Settings: Rotation Direction

Torque Reverse

0.2, 0.4, 0.6, 0.8, 1.0, 1.5, 2.0, 2.5 and 3.0 Ncm This function can also be turned off: TRL (torque reverse-less).

Rotation Direction:

Fwd: Forward, Rev: Reverse

•• If the torque reverse function is turned off, the file could jam inside the canal and break. •• Torque reverse should be set depending on the canal and the file. •• If the torque reverse seems to be activated too frequently increase its value. Operation 2010-12-16

Memory Settings: Additional Operation Settings Additional Functions: Torque Slow Down (TORQ.SL.D.), Linked to canal measurement (LINKED FUNCTION**), Apical Reverse or Stop (APICAL ACT.**), Auto Start and Stop (AUTO STT/STP**), Apical Slow Down (APICAL SL.D.**), Apical Torque Reduction (APICAL TRQ.D.**) 1. Select a memory number for the standby display; press the Plus or Minus switch. 2. Hold down the Select switch for at least 1 second to show the displays for additional operation settings. 3. Press the Select switch to go from one display to the next. 4. Change the setting; press the Plus or Minus switch. Standby Display

* The display will go back to the standby display if 5 seconds (factory setting) elapses without a switch being pressed.

Torque Slow Down:

When this is turned on, the motor will slow down as the torque load increases. Torque Slow Down

Linked Function**:

When this is turned on, the functions below will be activated. Linked Function

Apical Reverse or Stop**:

The file will reverse or stop when the file tip reaches the Flash Bar. Apical Reverse or Stop

Auto Start & Stop**:

When this is turned on, the file starts rotating when it is inserted and stops when it is taken out of the canal. Auto Start & Stop

Apical Slow Down**:

When this is turned on, the file slows down as it approaches the apex. Apical Slow Down

Apical Torque Reduction**:

When this is turned on, the torque setting that triggers reverse rotation is reduced as the file tip approaches the apex. Apical Torque Reduction

** These functions are available only when connected to the Root ZX mini.

Operation 2010-12-16

Memory Settings: Other Settings Other Settings: The factory settings are shown below. Beeper (BEEP VOLUME)

Big

Right or Left Handed (DOMI. HAND)

Right

Auto Power Off (AUTO PWR)

3 min.

Backlight (B.L.COLOR CHANGE)

Positive/Negative Display (DISP. TYPE)

Posi

Return to Standby Time (S.S.R TIME)

5 sec.

1. With unit turned off, hold down Select Switch and then press the Main Switch. 2. Press the Select Switch to select one of the settings. 3. Press the Plus or Minus switches to change the setting. 4. Press the Main Switch to return to the standby display.

U sa g e

Beeper Volume: Press Plus or Minus switch to set beep volume used for switch operation and alarms at Off, Low or Big. Beeper Volume Auto Power Off Time: The time lapse for automatic shut off when the unit is not used can be set from 1 to 15 minutes. Press Plus or Minus switch to set the time. Auto Power Off Time Positive / Negative Display: Set display for black on white background or vice versa. Positive Display

Negative Display Right or Left Handed: Set display for right- or left-handed user. Display turns upside down for left-handed users.

Right Handed

Left Handed Backlight Color Change: When this is turned on, the backlight will change color depending on torque and file tip location. It also changes color for setting displays. Does not change color when turned off.

Backlight Color Change Return to Standby Time: Set the time that elapses before display returns to standby from settings displays. Set from 1 to 15 seconds by pressing Plus or Minus switches. Return to Standby Time

Operation 2010-12-16

Restore Default Memories Restore the original factory settings for the memories in the following way. * This will restore the original memory settings. You cannot restore settings for just one memory.

1. Hold down the Select Switch, the Plus Switch and the Minus Switch and then turn the unit on with the Main Switch. 2. The "MemClear" display will appear. Press the Select Switch to restore the default memories or press the Main switch to cancel the operation. 3. Wait unit the “Finished” display appears and then press the Main switch to go to the standby display.

(3) After Use Take Out File

1. Hold down the Select switch and press the Main switch to turn the power off. * The power will go off automatically if the unit is not used and no switches are pressed for 3 minutes. 2. Hold down the file release button and pull the file straight out.

•• Take care not to injure your fingers when inserting and removing files. •• Never insert or remove files without holding down the button; this will damage the chuck. •• Make sure the unit is turned off before inserting or removing files.

Operation 2010-12-16

Usage; Operation with the Root ZX mini Install File Electrode 1

2 Bracket

Electrode Site Cap

Contact (gold)

File Electrode

Installation Jig Push Down

Take out the silver screw used to secure the file electrode.

Pick up the installation jig for the electrode with your right hand and then slide the electrode in a little so that the contact on the contra angle goes between the bracket prongs. * It is easier to get the bracket in if you push the end down slightly.

U sa g e , Usage; with the Root ZX mini

Take out the black screw and remove the cap that covers the elctrode installation area.

Pull out the installation jig and push the electrode all the way in. Then secure it with the silver screw. * The contact must go between the bracket prongs and then underneath the electrode.

Good

No Good

Good: Contact must go under the electrode. No Good: Contact must not go on top of the electrode.

Do not mix up the black screw used for the cap and the silver screw used for the electrode.

•• Make sure the screw is properly tightened up; otherwise it might come out and be swallowed. Operation 2010-12-16

Install File Electrode 4

File release button

File Electrode

Swing the electrode back as shown in the illustration.

Hold down the file release button. Insert the file and turn it back and forth until it lines up with the latch mechanism. Push the file all the way into the latch. Release the file release button.

Push the file electrode down so that it pinches the file as shown in the illustration.

Inserting and removing files without holding the file release button down will damage the chuck. Do not let the electrode pinch the cutting part of the file. The file electrode may not fit on some types of files. The file electrode cannot be used for files with a shank diameter greater than 1.2 mm, files with large cutting heads such as largo burrs, files with shanks that are not round and Gates Glidden drills.Do not mix up the black screw used for the cap and the silver screw used for the electrode.

•• Use caution when inserting and removing files to avoid injury to fingers. •• Make sure the file goes all the way in. Give the file a light tug to make sure it is properly installed.

Operation 2010-12-16

Connect the Transmission Cable * Refer to the user manual for the Root ZX mini. 1

Plug: White

Take off the cap and plug the cable’s white plug all the way into the handpiece.

Plug: Gray

Plug the cable’s gray plug into the Root ZX mini.

Check Operation

Usage; with the Root ZX mini

Do not mix up the cable plugs.

■■ Make sure file electrode is making good contact with the file. ■■ Touch the file with the contrary electrode and make sure the meter goes all the way to its end and there are no segments that do not light up. Watch out because the motor might start up when you do this.

•• Use only the special cable provided. Other cable could be electrically risky and result in damage or injury. Make sure the file goes all the way in. Give the file a light tug to make sure it is properly installed. •• Check the meter activity before each patient and do not use the instrument if all the segments of the display do not light up. This suggests that the meter cannot make an accurate reading.

•• Make sure the plugs go straight in. •• After insertion give plugs a light tug to make sure they are securely connected. Otherwise, data may not be transmitted acurately. •• Do not bump the plugs or drop anything on them when they are plugged in. Operation 2010-12-16

Meter Display * Refer to the user manual for the Root ZX mini for information about canal measurement and for warnings and notes about use. i

iii

Measurement Bar Meter Numbers

Flash Bar 0.5 Blinks On and Off

i. The Measurement Bar shows the location of the file tip. The Flash Bar blinks on and off when the file is inside the canal. ii. The 0.5 meter reading shows where the file tip is about 0.5 to 1.0 mm from the anatomical apex. * The numbers 1, 2, and 3 on the meter do not indicate length in millimeters. iii. If the file tip goes past the Flash Bar, an alarm will sound and the backlight will blink on and off.

Operation 1

Turn on the Tri Auto mini and Root ZX mini. The backlight for the display will be yellow. Hook the Contrary Electrode in the corner of the patient’s mouth.

Contrary Electrode

•• In some cases such as a blocked root canal, a measurement can not be made. (For details refer to the section of the Root ZX mini manual that covers canals not suitable for measurement.) •• Accurate measurement is not always possible, especially in cases of abnormal or unusual root canal morphology; always take an x-ray to check the measurement results. •• If the meter does not move when the file is inserted, the unit may be malfunctioning and must not be used. •• Do not use an ultra sonic scaler while the contrary electrode is hooked in the patient’s mouth; noise from the scaler could cause the motor to start running resulting in an accident or injury. •• Absolutely never allow the contrary electrode, the handpiece file electrode or the connections for these to contact an ordinary AC power source such as a socket; this could result in a very serious and angerous shock.

•• Occasionally the meter will make a sudden and large movement as soon as the file is inserted into the root canal, but it will return to normal as the file is advanced down towards the apex. •• The contrary electrode, file electrode and metal parts of the contra angle could cause an adverse reaction if the patient has an allergy to metals. Ask the patient about this before using the Tri Auto mini. •• Take care that medicinal solutions such as formalin cresol (FC) or sodium hypochlorite do not get on the contrary electrode or the contra angle. These could cause an adverse reaction such as inflammation. •• The file electrode cannot be used with the following types of files including nickel-titanium ones. Use these files without attaching the file electrode. Files with a shank diameter greater than 1.2 mm, Files with shanks that do not have a circular cross section, Gates Glidden Drills, Tools with large cutting heads such as largo burrs.

Operation 2010-12-16

Previous Page Next Page
