ENTity NasoView Reference Manual 2012

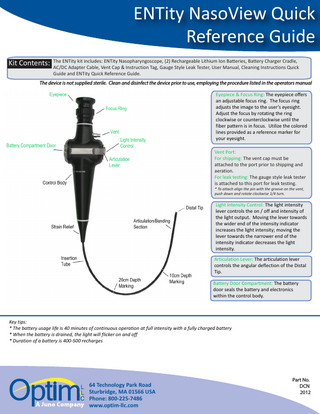

ENTity NasoView Quick Reference Guide ENTity kit includes: ENTity Nasopharyngoscope, (2) Rechargeable Lithium Ion Batteries, Battery Charger Cradle, Kit Contents: The AC/DC Adapter Cable, Vent Cap & Instruction Tag, Gauge Style Leak Tester, User Manual, Cleaning Instructions Quick Guide and ENTity Quick Reference Guide. The device is not supplied sterile. Clean and disinfect the device prior to use, employing the procedure listed in the operators manual Eyepiece & Focus Ring: The eyepiece offers an adjustable focus ring. The focus ring adjusts the image to the user’s eyesight. Adjust the focus by rotating the ring clockwise or counterclockwise until the fiber pattern is in focus. Utilize the colored lines provided as a reference marker for your eyesight. Vent Port: For shipping: The vent cap must be attached to the port prior to shipping and aeration. For leak testing: The gauge style leak tester is attached to this port for leak testing. * To attach align the pin with the groove on the vent, push down and rotate clockwise 1/4 turn.

Light Intensity Control: The light intensity lever controls the on / off and intensity of the light output. Moving the lever towards the wider end of the intensity indicator increases the light intensity; moving the lever towards the narrower end of the intensity indicator decreases the light intensity. Articulation Lever: The articulation lever controls the angular deflection of the Distal Tip. Battery Door Compartment: The battery door seals the battery and electronics within the control body.

Key tips: * The battery usage life is 40 minutes of continuous operation at full intensity with a fully charged battery * When the battery is drained, the light will flicker on and off * Duration of a battery is 400-500 recharges

64 Technology Park Road Sturbridge, MA 01566 USA Phone: 800-225-7486 www.optim-llc.com

Part No. DCN 2012
