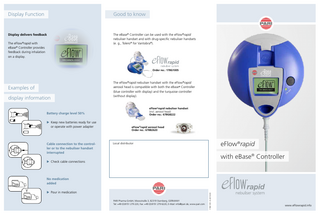

Page 1
Display Function
Good to know
Display delivers feedback
The eBase® Controller can be used with the eFlow®rapid nebuliser handset and with drug-specific nebuliser handsets (e. g., Tolero® for Vantobra®).
The eFlow®rapid with eBase® Controller provides feedback during inhalation on a display.
Order no.: 178G1005
The eFlow®rapid nebuliser handset with the eFlow®rapid aerosol head is compatible with both the eBase® Controller (blue controller with display) and the turquoise controller (without display).
Examples of display information
eFlow®rapid nebuliser handset (incl. aerosol head) Order no.: 678G8222
Battery charge level 50% Keep new batteries ready for use
or operate with power adapter
Cable connection to the controller or to the nebuliser handset interrupted
eFlow®rapid aerosol head Order no.: 678B2620
eFlow®rapid
Local distributor
with eBase® Controller
Check cable connections
Pour in medication PARI Pharma GmbH, Moosstraße 3, 82319 Starnberg, GERMANY Tel: +49 (0) 8151 279 220, Fax: +49 (0) 8151 279 6220, E-Mail: [email protected], www.pari.com
178D1051-D-2019-09
No medication added
www.eFlowrapid.info
eFlow®rapid nebuliser system
Hygiene instructions
Modern Inhalation Therapy twice as fast1!
1. Clean Disassemble the nebuliser handset into its individual components and clean it with warm tap water and washing-up liquid immediately after every inhalation session.
eFlow®rapid enables rapid, efficient inhalation and facilitates treatment considerably.2,3
Pl th ease Ins e de ob se tru t rv cti ails on in e s f the or us e!
3. Dry Allow to air dry on a clean cloth.
4. Store Store in a clean, dry place.
2. Disinfect Disinfect the nebuliser handset components including aerosol head once a day directly after cleaning for 6 minutes in a steam disinfector. Alternatively, boil them in distilled water for 5 minutes.
Advantages for Patients
Individual components
eBase Controller
Cover cap
●● Short inhalation times for better quality of life 4 ●● Silent operation for discreet use
Cap seal
●● Lightweight, handy, operated with mains or battery power
Power button
for greater mobility ●● Easy to clean and disinfect, offers outstanding
hygiene safety
Connector for connection cord
●● Display delivers feedback during inhalation
Medication reservoir*
Pre-assembled nebuliser handset parts*
Aerosol head 1) compared with the PARI LC PLUS nebuliser handset; D Hubert. S Leroy, S Dominique, J Kovarik: Pharmakokinetik comparison of […] cystic fibrosis patients. European Cystic Fibrosis Society […] 13-16 June 2007 2) Fischer R et al. 2007, J.Cyst Fibr. 6 (Suppl 1): 41. 3) Naehrig S et al. 2011, Eur J Med Res 16:63-66 4) Govoni et al. 2013, Pulm.Phar. Ther 26 (2013)249-255
Inspiratory valve Mouthpiece
Aerosol chamber*
*A erosol chamber and medication reservoir are pre-assembled and cannot be taken apart!
