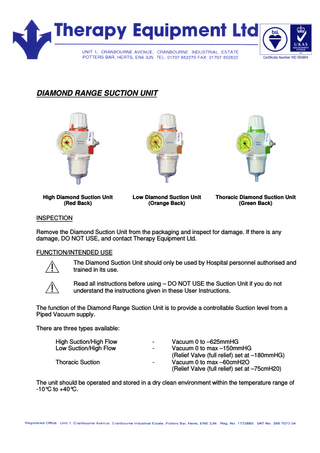

Diamond Range User Instructions Ver L Jan 2014

Diamond Range Suction User Instructions Version K; November 2013 Page 2 of 4

USER INSTRUCTIONS 1. Unpack the Controller from the packaging 2. Push the Controller Probe into the Yellow Vacuum Wall Outlet. 3. Push the ¼” Bore Plastic Suction Tubing over the coned end of Pipeline Protector Bowl at the bottom of the unit, ensuring that a good fit is achieved, and that the tubing cannot come loose. The Suction Tubing should be a maximum of 2 Metres between the Suction Controller and Receiver Jar. 4. Turn the unit on using by moving the On/Off Tap on the side of the unit 180° so that the ON is showing. 5. The level of vacuum required can then be adjusted by turning the Control Knob on the top of the unit. (Increase – clockwise; Decrease – anti-clockwise). 6. To pre-set the vacuum level before use, occlude the Suction Tubing between the Controller and the Receiver Jar. Turn the Control Knob until the required level of suction reads on the gauge at the front of the unit. The Suction Unit can now be switched off, and will apply the set vacuum level, the next time the unit is switched on. 7. The unit should be switched off by moving the On/Off Tap on the side of the unit back to the fully OFF position whenever not in use. The unit should never be left or operated in any other position other than fully OFF or fully ON. High/Low Suction controllers should not be used for continuous drainage. The Pipeline Suction Unit should only be used by persons who have received adequate instructions in its use. It is the responsibility of the end user to ensure that the correct unit and vacuum level is selected. Therapy Equipment accepts no responsibility for the selection of an incorrect unit or vacuum setting DIAMOND PIPELINE PROTECTORS The Pipeline Protector is a complete plastic bowl fitted to the bottom of the Diamond Range Suction Controller. The unit is supplied complete with a Hydrophobic Filter that automatically shuts down the Suction Controller when the filter comes into contact with fluid, thereby giving 100% protection against possible contamination of the Vacuum Pipeline. To assist end users in identifying Pipeline Protectors that have activated, the filter will turn pink. The Pipeline Protector should be changed immediately if the filter turns pink or discoloured (the original colour is white). It is also recommended that the Pipeline Protector be changed routinely as follows: High Usage Area i.e. Theatres, HDU etc. Low Usage Area i.e. Wards etc.

-

Every 3 months Annually

The Pipeline Protector is changed by turning the plastic bowl in an anti-clockwise direction until the bayonet mechanism releases. The entire plastic bowl complete with filter should be disposed of and replaced with new. The new Pipeline Protector should be fitted by lining up the ‘lugs’ on the Bowl with the mating sections of the underneath of the Suction Unit, and turning in a clockwise direction until the bowl is locked into place. Spare Pipeline Protectors

-

Part No. 7900 (Pack of 10)

The function checks detailed under Preventative Maintenance should be carried out after any dismantling and reassembly of the unit, including Pipeline Protector changes. CLEANING INSTRUCTIONS

Diamond Range Suction User Instructions Version K; November 2013 Page 3 of 4

Wipe over the outside of the unit and the gas supply hose with an alcohol or disinfecting wipe. If you suspect that the unit is contaminated, remove it from use and refer the device to the appropriate department. TECHNICAL SPECIFICATION The range of Pipeline Suction Equipment manufactured by Therapy Equipment Ltd fully conforms to ISO 10079-3:2009. Inlet Connection

-

Direct British Standard Vacuum Probe

Outlet Connection

-

6.4mm Male – Tapered

Constitutional Materials

-

External Components Internal Metal Components On/Off Tap

Flowrates

-

High Suction Unit – In Excess of 55LPM @ -80 kPa Low Suction Unit – In Excess of 20LPM @ -20 kPa Thoracic Suction Unit – In Excess of 20LPM @ -6 kPa

-

ABS Stainless Steel Glass Filled Nylon

WARNINGS DO NOT autoclave, or immerse in liquid, or use if the Suction Controller becomes internally contaminated. DO NOT attempt to use if the collection canister is full, or if the Pipeline Protector is wet or discoloured ENSURE all connections are tight and leak free ENSURE the unit is only used in the fully ON or fully OFF position. TROUBLESHOOTING PROBLEM

ANALYSIS

Faulty Gauge

Suction Controller indicating wrong vacuum

Relief Valve on Thoracic or Low Suction Malfunctions

Too high vacuum maybe applied to the patient

Pipeline Protector malfunction or has been contaminated

Suction Controller will not function or if Pipeline Protector becomes contaminated will cease to function

ACTION •

Return to the Hospital Department responsible for maintenance or Manufacturer

•

Adjust the controller up to the full, and ensure that the relief valve is functional, before connecting to the patient.

•

Ensure adequate safeguard against contamination of Controller Ensure that the new Pipeline Protector is functional if contamination has occurred. If Tap is in On Position the Controller can be turned off by means of the Control Knob Visual Inspection to ensure that the Suction Controller is not damaged If damaged return the unit to the

•

• Breakage of On/Off Tap

If Tap is in Off Position the Controller will not function

• •

Diamond Range Suction User Instructions Version K; November 2013 Page 4 of 4

• When the unit is turned to ON the Suction will creep up to maximum when occluded

Leaking On/Off Tap

•

Hospital Department responsible for maintenance or Manufacturer Preset the unit to -100mmHg, occlude the Pipeline Protector and ensure the suction maintains the correct level If creeping return the unit to the Hospital Department responsible for maintenance or Manufacturer

RECEIVER JARS A Suction Receiver Jar Assembly should always be used in conjunction with Suction Controllers. Whilst Therapy Equipment supplies its own Receiver Jar system, the Suction Controllers can be used with any manufacturer’s Jar System, including Disposable Liner Systems. Standard Receiver Jars can be used with High and Low Suction Controllers, however more specialist Drainage systems are required for use with Thoracic Suction Controllers to maintain the very low levels of Suction being applied. USE OF ANIMAL TISSUES/PHTHALATES The standard Direct Diamond Suction unit has not been manufactured using any Animal Tissue or Phthalates. We should confirm however that Phthalates are used in the manufacture of the flexible High Pressure Hose, Suction Tubing and Disposable Liner (full details are available on request). PREVENTATIVE MAINTENANCE/PRE-USE CHECKS Whilst the Suction Controllers are supplied with a Lifetime Function Warranty (7 years), the unit should be included in an annual service inspection. • •

•

•

The unit should be wiped with an Alcohol or Disinfecting Wipe to clean A check for leakage as follows: 1. Turn Suction Controller on and adjust Control Knob to maximum 2. Occlude Pipeline Protector/Filter Jar outlet and wait for full vacuum (in excess of – 500mmHG) to register on gauge. 3. Adjust Control Knob to minimum. 4. The gauge should not drop showing the unit is leak tight (A drop over the complete scale on the Low Controller taking 15 seconds or more is acceptable) A check for function/flowrate as follows: 1. Turn Suction Controller on and adjust vacuum to maximum 2. Occlude Patient outlet on Receiver Jar and ensure that a vacuum of –400mmHG (High Suction) or –150mmHG (Low Suction) is registered within 4 seconds. The Pipeline Protector (Part No. 7900) should be regularly changed. The frequency of the change depends on hospital policy however we recommend every 3 months in a high usage area e.g. Theatre and annually in a low usage area e.g. Wards.

For Diamond Thoracic Suction Units only: 1. Turn the Thoracic Diamond Range Suction On/Off tap downwards so the ON is showing 2. Occlude the Pipeline Protector and turn the Control Knob clockwise to MAXIMUM and make sure the Vacuum level reaches in excess of -50cmH2O 3. While still occluded, turn the Control Knob to MINIMUM and make sure the Vacuum Gauge registers zero. Regular strip down maintenance on the Suction Controller is not required. Revision No.
