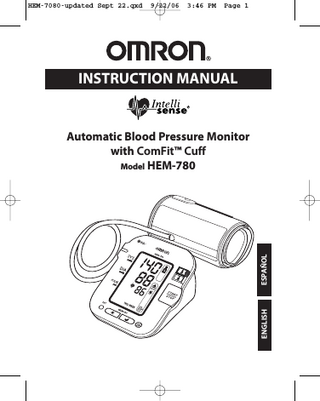

HEM-780n3 Instruction Manual

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 2

TABLE OF CONTENTS Before Using the Monitor Introduction... 4 Safety Information...5 Operating the Device...5 Risk of Electrical Shock...6 Care and Maintenance...7 Before Taking a Measurement...8 Operating Instructions Know Your Unit... 9 Unit Display... 10 Display Symbols... 11 Irregular Heartbeat Symbol... 11 Movement Error Symbol... 11 USER ID Symbol... 11 Morning Hypertension Symbol... 12 Heartbeat Symbol... 13 Average Value Symbol... 13 Morning Average Symbol... 13 Evening Average Symbol... 13 Battery Installation... 14 Using the AC Adapter... 16 Setting the Date and Time... 18 Applying the Arm Cuff... 22

2

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 3

TABLE OF CONTENTS Taking a Measurement... 26 Using the Guest Mode... 26 Selecting the USER ID... 27 Using the USER ID... 27 Selecting the TruRead™ Mode... 28 Using the Single Mode... 30 Using the TruRead™ Mode... 33 Special Conditions... 35 Using the Memory Function... 36 Averaging Function... 36 To Display the Measurement Values... 37 Morning and Evening Averages... 39 Morning Averages... 39 Evening Averages... 39 To Display Morning and Evening Averages... 40 Display Combinations... 41 To Delete All Values Stored in the Memory... 42 Care and Maintenance Care and Maintenance... 43 Error Indicators and Troubleshooting Tips... 45 FCC Statement... 47 Warranty... 48 Specifications... 49 Notes... 50

3

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 4

INTRODUCTION Thank you for purchasing the Omron® HEM-780 IntelliSense® Automatic Blood Pressure Monitor with ComFit™ Cuff.

Fill in for future reference. DATE PURCHASED: __________________ SERIAL NUMBER: ____________________

Staple your purchase receipt here

Your new digital blood pressure monitor uses the oscillometric method of blood pressure measurement. This means the monitor detects your blood’s movement through your brachial artery and converts the movements into a digital reading. The monitor stores measurement results for two people and features Morning and Evening Averages. TruReadTM allows for three consecutive measurements with timed intervals for an average reading. The HEM-780 comes with the following components: • Monitor • ComFitTM Cuff • AC Adapter • 4 “AA” Batteries • Storage Case • Instruction Manual printed in English and Spanish • Warranty Card The HEM-780 IntelliSense® Automatic Blood Pressure Monitor is intended for home use.

SAVE THESE INSTRUCTIONS 4

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 5

SAFETY INFORMATION To assure the correct use of the product basic safety measures should always be followed including the warnings and cautions listed in this instruction manual. SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient or damage to the equipment or other property.

OPERATING THE DEVICE Contact your physician for specific information about your blood pressure. Self-diagnosis and treatment using measured results may be dangerous. Follow the instructions of your physician or licensed healthcare provider. If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Contact a physician immediately. Read all of the information in the instruction manual and any other literature in the box before operating the unit. This device is intended for use in measuring blood pressure and pulse rate in the adult population. Do not use this device on infants or persons who cannot express their intentions.

5

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 6

SAFETY INFORMATION Read the Special Conditions section (page 35) of the instruction manual if your systolic pressure is known to be more than 220 mmHg. Inflating to a higher pressure than necessary may result in bruising where the cuff is applied. Operate the device only as intended. Do not use the device for any other purpose. Dispose of the device, components and optional accessories according to applicable local regulations. Unlawful disposal may cause environmental pollution. Do not use a cellular phone near the device. It may result in an operational failure. Use only Omron authorized parts and accessories. Parts and accessories not approved for use with the device may damage the unit. RISK OF ELECTRICAL SHOCK Do not plug or unplug the power cord into the electrical outlet with wet hands. Do not overload power outlets. Plug the device into the appropriate voltage outlet.

6

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 7

SAFETY INFORMATION CARE AND MAINTENANCE Do not subject the monitor to strong shocks, such as dropping the unit on the floor. Do not submerge the device or any of the components in water. Store the device and the components in a clean, safe location. Changes or modification not approved by Omron Healthcare will void the user warranty.

7

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 8

BEFORE TAKING A MEASUREMENT To ensure a reliable reading follow these recommendations: 1. Avoid eating, smoking, exercising, and bathing for 30 minutes before taking a measurement. Rest for at least 15 minutes before taking the measurement. 2. Stress raises blood pressure. Avoid taking measurements during stressful times. 3. Measurements should be taken in a quiet place. 4. Remove tight-fitting clothing from your arm. 5. Sit in a chair with your feet flat on the floor. Rest your arm on a table so that the cuff is at the same level as your heart. 6. Remain still and do not talk during the measurement. 7. Keep a record of your blood pressure and pulse readings for your physician. A single measurement does not provide an accurate indication of your true blood pressure. You need to take and record several readings over a period of time. Try to measure your blood pressure at about the same time each day for consistency.

8

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 9

KNOW YOUR UNIT Main Unit:

Display

USER ID Selection Switch Battery Compartment

Start/Stop Button Memory (

) Button Air Jack

Morning/Evening Average ( / ) Buttons

AC Adapter Jack

SET Button

Components: Air Tube

Four “AA” Batteries Air Plug (Connects to Air Jack)

Storage Case

Housing

Arm Cuff Cord

AC Adapter 9

Instruction Manual

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 10

UNIT DISPLAY

Systolic Blood Pressure

USER ID Symbol (A or B)

Diastolic Blood Pressure Morning Hypertension Symbol Heartbeat Symbol Movement Symbol Irregular Heartbeat Symbol Deflation Symbol

Morning Average Symbol Evening Average Symbol Average Value Symbol

Date/Time Display

Memory Symbol

Low Battery Indicator Pulse Display Week Display TruRead™ Symbol

10

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 11

DISPLAY SYMBOLS IRREGULAR HEARTBEAT SYMBOL ( ) When the monitor detects an irregular rhythm two or more times during the measurement, the Irregular Heartbeat Symbol ( ) will appear on the display with the measurement values. An irregular heartbeat rhythm is defined as a rhythm that varies by less than 25% from the average rhythm or 25% more than the average rhythm detected while the monitor is measuring the systolic and diastolic blood pressure. If the irregular heartbeat symbol ( ) displays with your measurement results, we recommend you consult your physician. Follow the directions of your doctor.

Normal Heartbeat Pulse Blood pressure

Irregular Heartbeat Short Long Pulse Blood pressure

MOVEMENT ERROR SYMBOL ( ) The Movement Error Symbol is displayed if you move your body during the measurement. Please remove the arm cuff, and wait 2-3 minutes. Take another measurement.

USER ID SYMBOL ( / ) The USER ID Symbol indicates USER A or USER B as selected by the user to take a measurement or when using the memory function. The USER ID Symbol is not displayed when using the Guest Mode to take a measurement.

11

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 12

DISPLAY SYMBOLS The American Heart Association1 recommends the following guideline for upper limit of normal for home blood pressure readings: AHA Home Guideline for Upper Limit of Normal BP Systolic Blood Pressure 135 mmHg Diastolic Blood Pressure 85 mmHg This is a general guideline because blood pressure depends on age and morbidity. The AHA recommends a lower home blood pressure goal for certain patients, including diabetic patients, pregnant women, and patients with renal failure1. The monitor is not intended to be a diagnostic device.

WARNING Contact your physician for specific information about your blood pressure. Self-diagnosis and treatment using measured results may be dangerous. Follow the instructions of your physician or licensed healthcare provider. Omron Healthcare recommends you contact your physician if the MORNING HYPERTENSION SYMBOL and/or the HEARTBEAT SYMBOL appear on the display with your measurement values. MORNING HYPERTENSION SYMBOL ( ) The Morning Hypertension Symbol is displayed if the morning average reading for a week is above 135 for the Systolic Blood Pressure value and/or 85 for the Diastolic Blood Pressure value when viewing the Morning Averages and the Evening Averages in the memory. 1

American Heart Association Scientific Statement 2004

12

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 13

DISPLAY SYMBOLS HEARTBEAT SYMBOL (

)

TAKING A MEASUREMENT

The Heartbeat Symbol flashes on the display during the measurement. The Heartbeat Symbol flashes at every heartbeat. When the measurement is complete, the Heartbeat Symbol flashes on the display with your blood pressure and pulse rate if the reading is above 135 for the Systolic Blood Pressure value and/or 85 for the Diastolic Blood Pressure value. USING THE MEMORY FUNCTION

The Heartbeat Symbol flashes when the blood pressure reading stored in the memory is above 135 for the Systolic Blood Pressure value and/or 85 for the Diastolic Blood Pressure value. AVERAGE VALUE SYMBOL ( ) The Average Value Symbol is displayed when you press the memory button. The most recent average reading appears on the display screen. MORNING AVERAGE SYMBOL ( ) The Morning Average symbol is displayed when viewing Morning Averages using the Memory Function. EVENING AVERAGE SYMBOL ( ) The Evening Average symbol is displayed when viewing Evening Averages using the Memory Function.

13

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 14

BATTERY INSTALLATION Battery Cover

1. Press the t indicator on the battery cover and slide the cover off in the direction of the arrow. 2. Install 4 “AA” size batteries so the + (positive) and - (negative) polarities match the polarities of the battery compartment as indicated. 3. Replace the battery cover.

14

|

{

{

|

|

{

{

|

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 15

BATTERY INSTALLATION BATTERY REPLACEMENT Low Battery Indicator

When the Low Battery Indicator appears on the display screen turn the monitor off and remove all the batteries. Replace with four new batteries at the same time. Longlife alkaline batteries are recommended.

CAUTION If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Contact a physician immediately. NOTES: • Turn the unit off before replacing the batteries. If the batteries are removed while the unit is still on, the date and time will be reset to that of the previous use. However, the measurement results are not deleted. • When the batteries are replaced, you may need to reset the date and time. If the year is flashing on the display screen, refer to page 21, RESETTING THE DATE AND TIME. • The supplied batteries may have a shorter life.

CAUTION Dispose of the device, components and optional accessories according to applicable local regulations. Unlawful disposal may cause environmental pollution.

15

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 16

USING THE AC ADAPTER Use only the authorized Omron AC Adapter, Model Number HEMADPT1,with this monitor. We recommend you install the batteries even if the AC Adapter is used. If no batteries are installed, you may need to reset the date and time if the AC Adapter is disconnected. The measurement results will not be deleted.

CAUTION Use only Omron authorized parts and accessories. Parts and accessories not approved for use with the device may damage the unit.

16

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 17

USING THE AC ADAPTER TO CONNECT THE AC ADAPTER 1 Insert the AC Adapter Plug into the AC Adapter Jack on the back side of the monitor as illustrated. 2

Housing

2

1

Plug the AC Adapter into a 120V AC outlet (60 cycles). Cord

TO DISCONNECT THE AC ADAPTER 1 Hold the Housing to remove the AC Adapter from the electrical outlet. 2

Remove the AC Adapter plug from the monitor.

WARNING Do not plug or unplug the power cord into the electrical outlet with wet hands.

CAUTION Do not overload power outlets. Plug the device into the appropriate voltage outlet.

17

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 18

SETTING THE DATE AND TIME Set the monitor to the current date and time before taking a measurement for the first time. If the date and time are not set correctly, the measurement values stored in the memory and the average values may not be correct. The Blood Pressure Monitor automatically stores up to 84 individual measurements values with the dates and times. The monitor also calculates weekly averages for measurements in the morning and in the evening. Morning and evening averages are stored for this week and the last seven weeks. The monitor can also calculate an average reading based on the three most recent measurements taken within 10 minutes of the last reading. NOTES: • If only two readings are stored in the memory for the 10-minute period, the average is based on the two readings. • If one reading is stored in the memory for the 10-minute period, this reading is displayed as the average. 1. TO START THE SETTING Press and hold the SET button to adjust the date and time.

The year flashes on the display.

18

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 19

SETTING THE DATE AND TIME 2. SETTING THE YEAR The year can be set between 2006 and 2030. When the display reaches 2030, it will return to 2006. Press the Memory button ( ) to advance by increments of one year. Press the SET button to set the current year. The month flashes on the display. NOTE: Press and hold the Memory button ( ) to advance the date and time values faster. 3. SETTING THE MONTH Press the Memory button ( one month.

) to advance by increments of

Press the SET button to set the current month. The day flashes on the display.

19

HEM-7080-updated Sept 22.qxd

9/22/06

3:46 PM

Page 20

SETTING THE DATE AND TIME 4. SETTING THE DAY Press the Memory button ( ) to advance by increments of one day. Press the SET button to set the current day. The hour flashes on the display. 5. SETTING THE HOUR The time is set using AM or PM. Press the Memory button ( ) to advance by increments of one hour. Press the SET button to set the current hour. The minute flashes on the display. 6. SETTING THE MINUTE Press the Memory button ( ) to advance by increments of one minute. Press the SET button to set the minute setting. 7. TO TURN THE MONITOR OFF Press the START/STOP button. NOTE: The monitor will automatically turn off after the minute has been set after battery replacement. 20
